One of the most reliable 9 X 12W 4 IN 1 LED Wall Washer Light on the market today.


Included: 9 X 12W 4 IN 1 LED Wall Washer light, a power cable, and this user manual.

Performance trait and technical specifications
1. Has pixel mapping function
2. Flicker free
3. Built-in programs

4. LED Light Source: 9pcs 12 watt 4IN1 LEDs (RGBVV)

5. Lamp average life time: 50,000 hours

6. DMX Channel: 4, 5, 7, 36 channel

7. Control Mode: Auto, Master/Slave, DMX512, software (connect to computer), sound control

8. Dimmer: 100% linearly adjustable

9. Strobe: 0~25F.P.S

10. Lens Angle: 25°

11. Voltage: AC90-260V 50/60Hz

12. Power: 150W

13. Working Environment: indoor -20°C-40°C

14. IP Rate: IP20

15. Size(mm): 503 * 60 * 130

16. Weight(kg): 3.9 kg

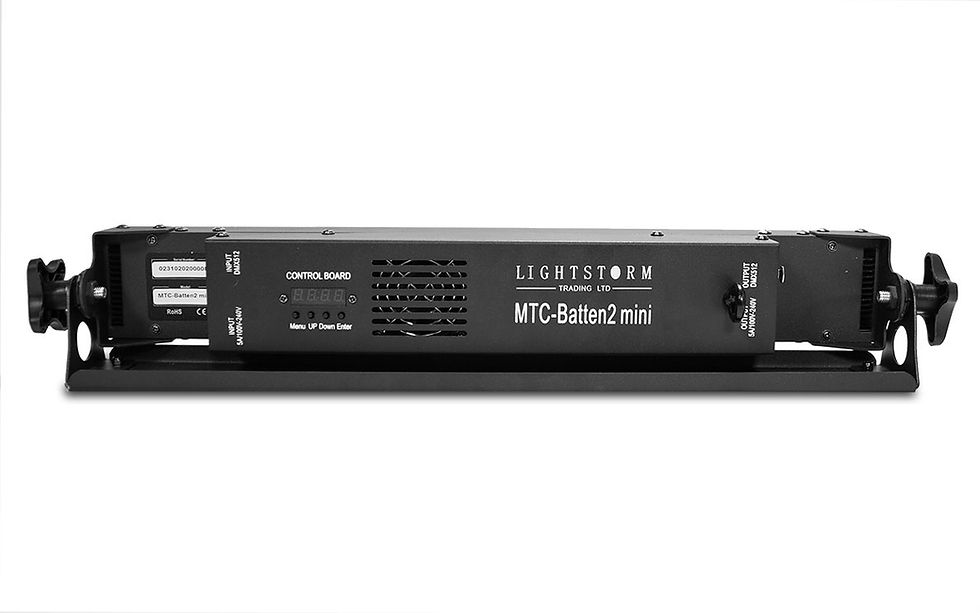

Miltec MTC Batten 2 mini

  • DISPLAY DMX address setting and channel mode

    A001-A512/4CH A mode

    B001-B512/5CH B mode

    C001-0512/7CH C mode

    D001-0512/36CH D mode
    mode

    Note: Press "Enter" to change to channel mode
    rL-- 0-255 Red
    gL 0-255 Green
    bL 0-255 Blue
    UL-- 0-255 White
    FLS Shut Strobe
    FAd Fade Color fading
    ASC- Color Macro Coloor changing
    CE-- 0-15 Program
    CS-- 0-15 Program speed
    SHNd Show mode 4 color changing
    SOUN Sound mode Sound Control
    SENE Sound sense Sound sensitivity
